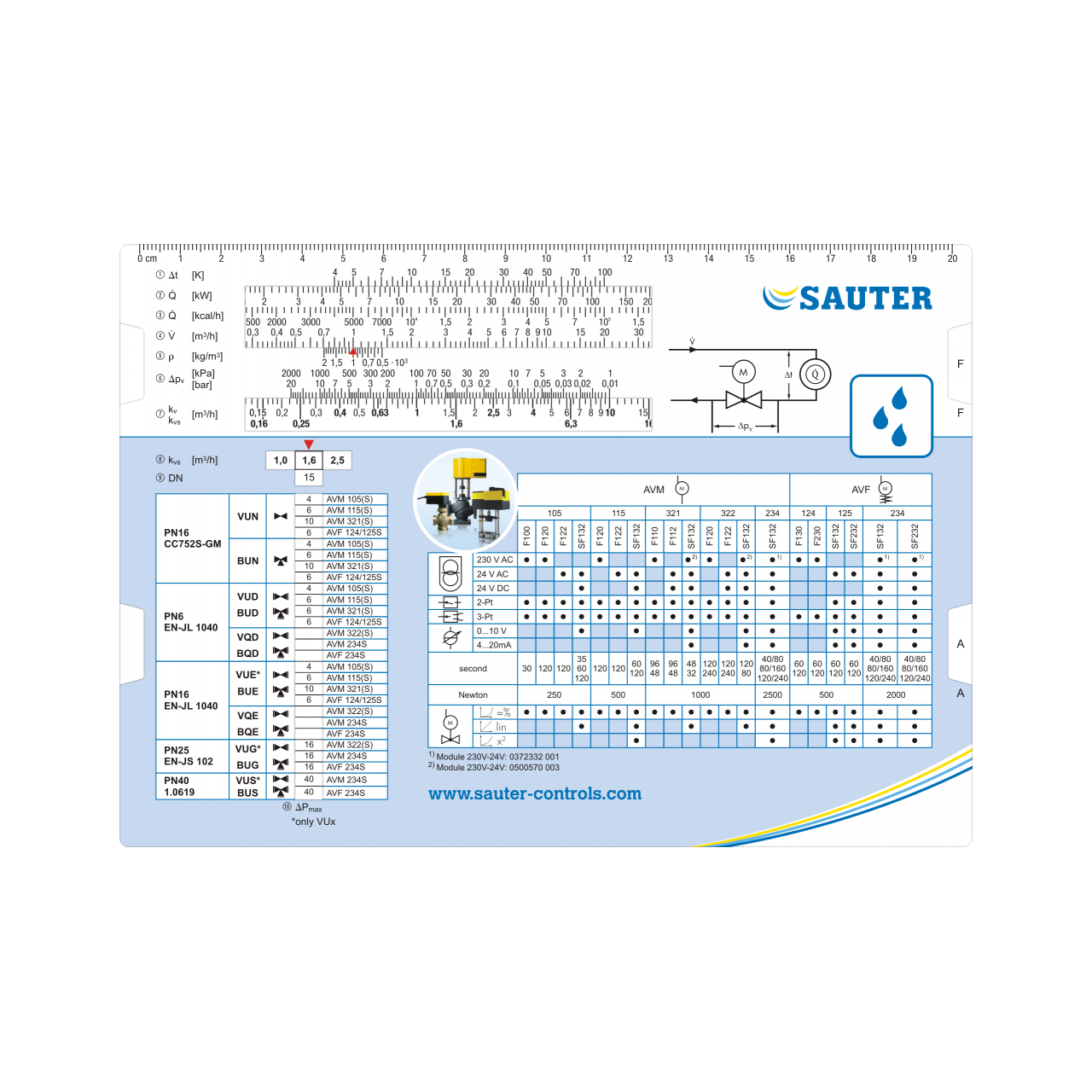

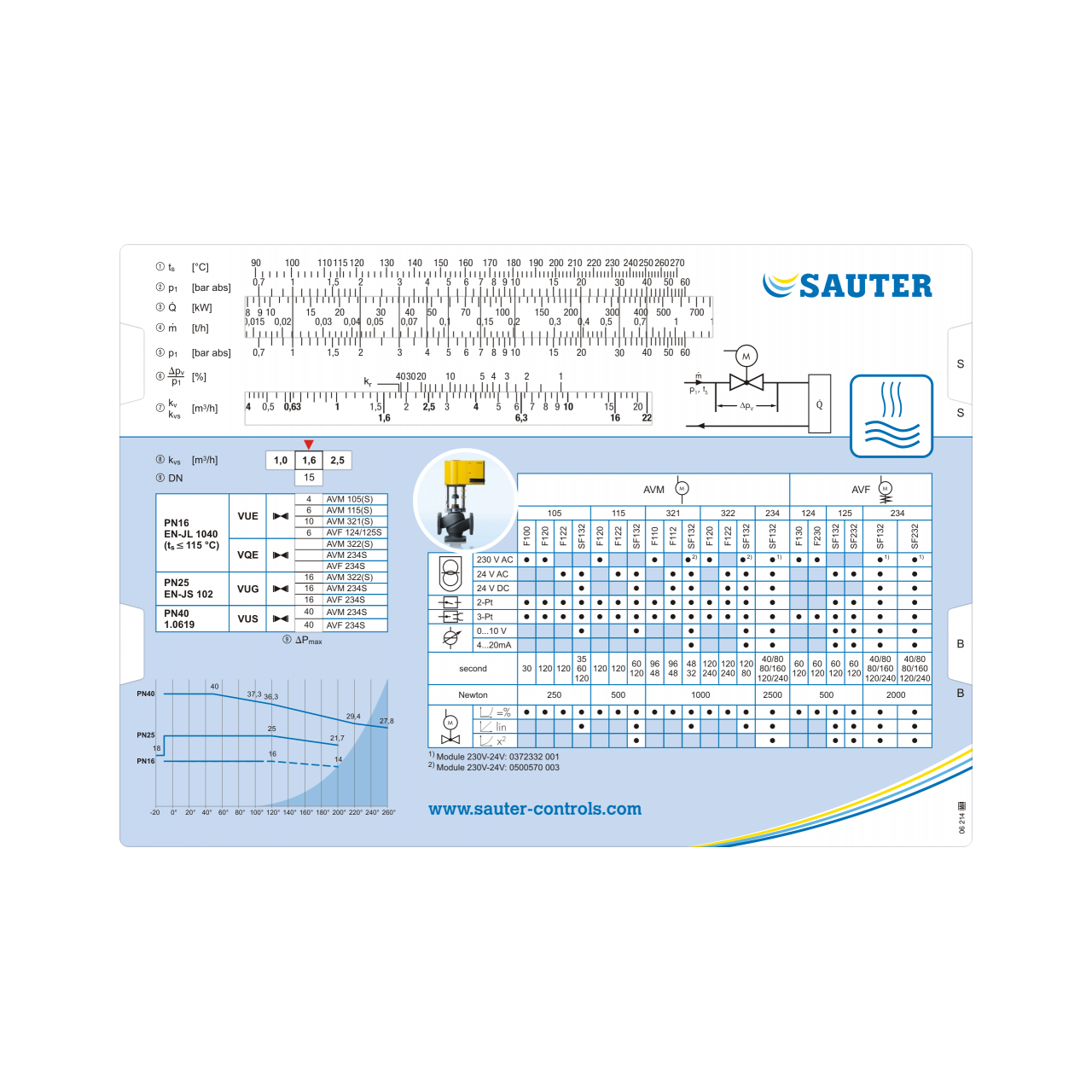

Valve Slide Chart

With the valve slide chart, you can easily determine the nominal valve size as a function of the flow rate for liquids, gases and vapors.

The displayed sample is reserved for this customer regarding content and design. A special design with other contents can be developed and manufactured according to your specifications.
Minimum order 500 pieces.

150 × 205 mm
