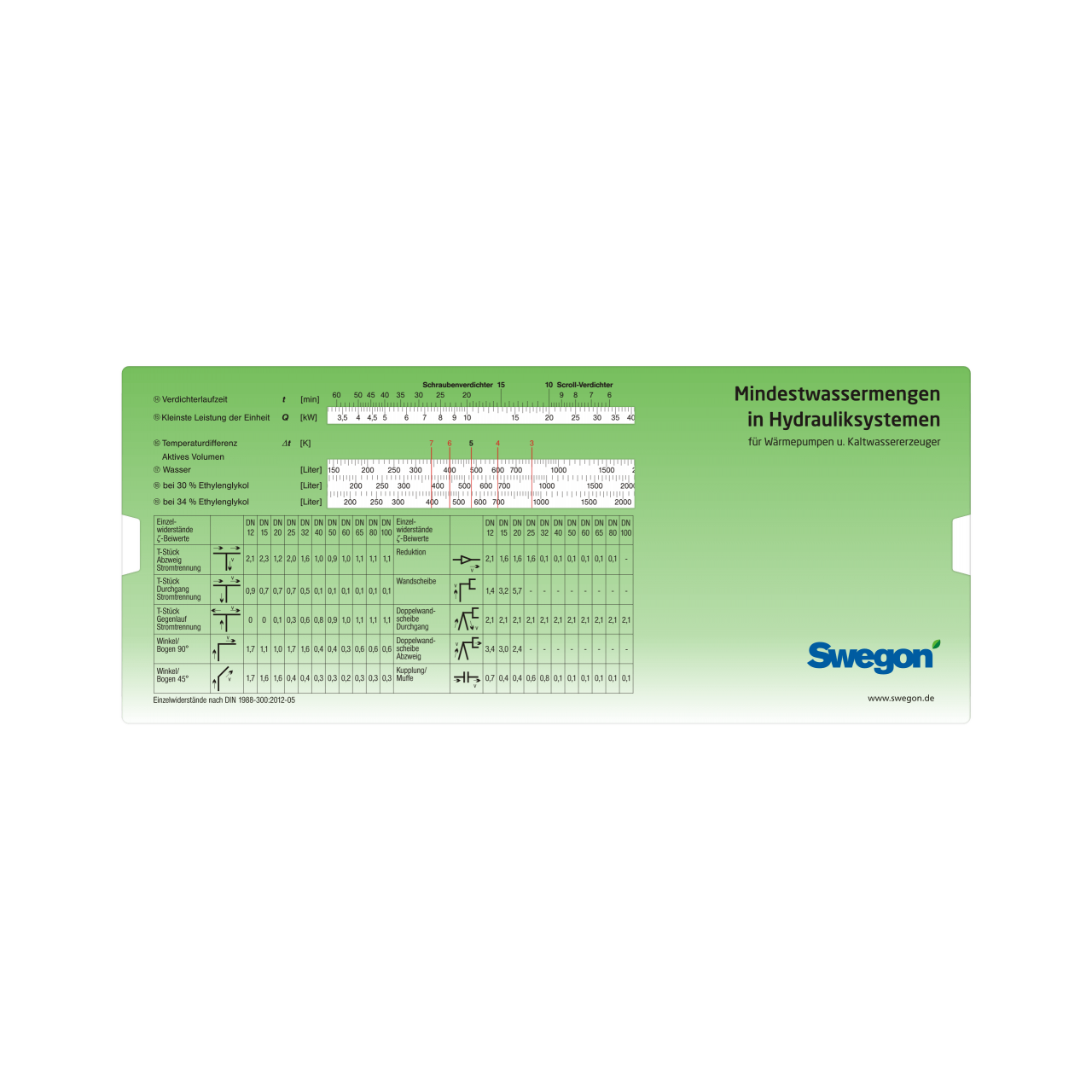

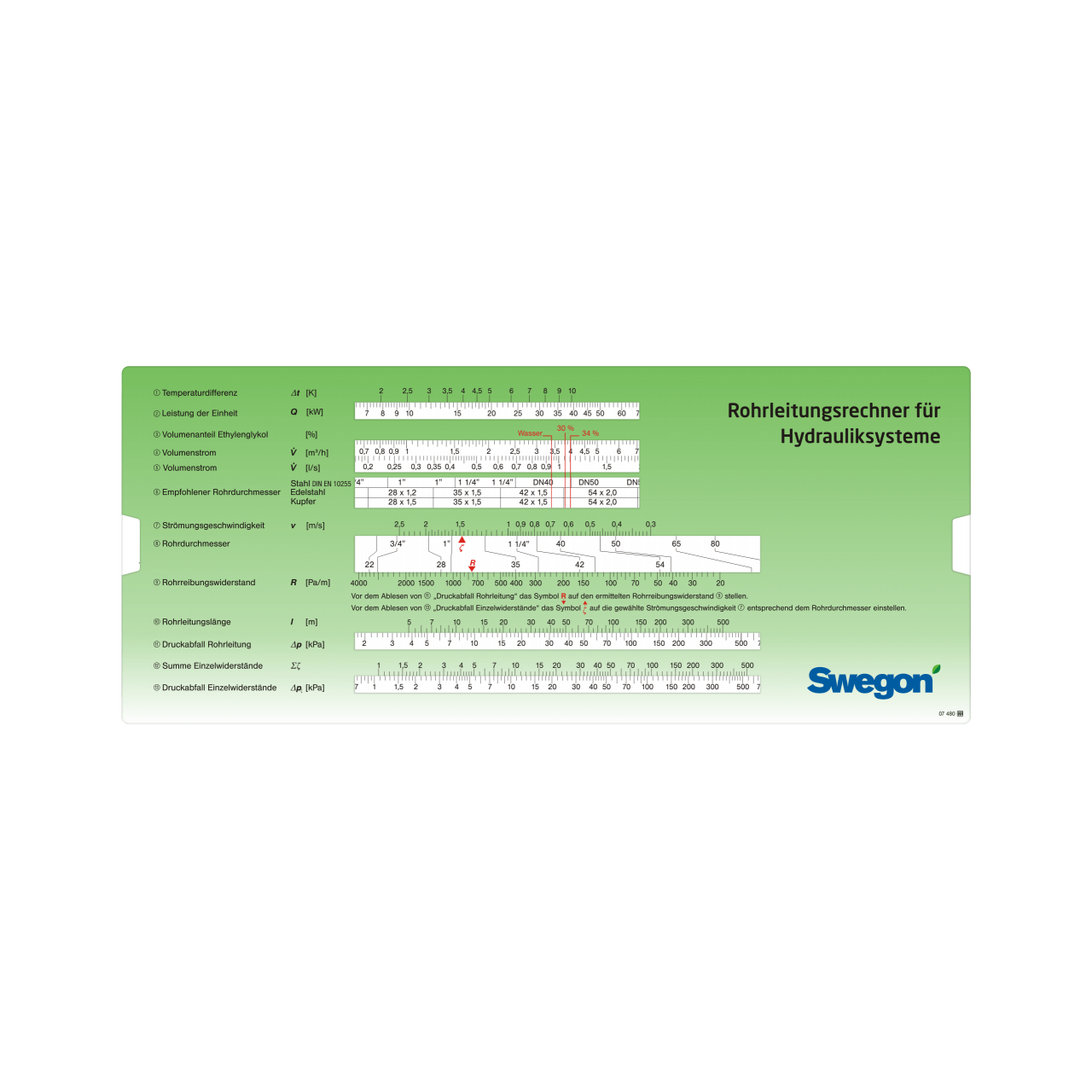

Pipe Slide Chart

This pipe slide chart enables the rough determination of the performance data for the dimensioning of hydraulic systems as well as the associated pipes.

The displayed sample is reserved for this customer regarding content and design. A special design with other contents can be developed and manufactured according to your specifications.
Minimum order 500 pieces.

130 × 280 mm
